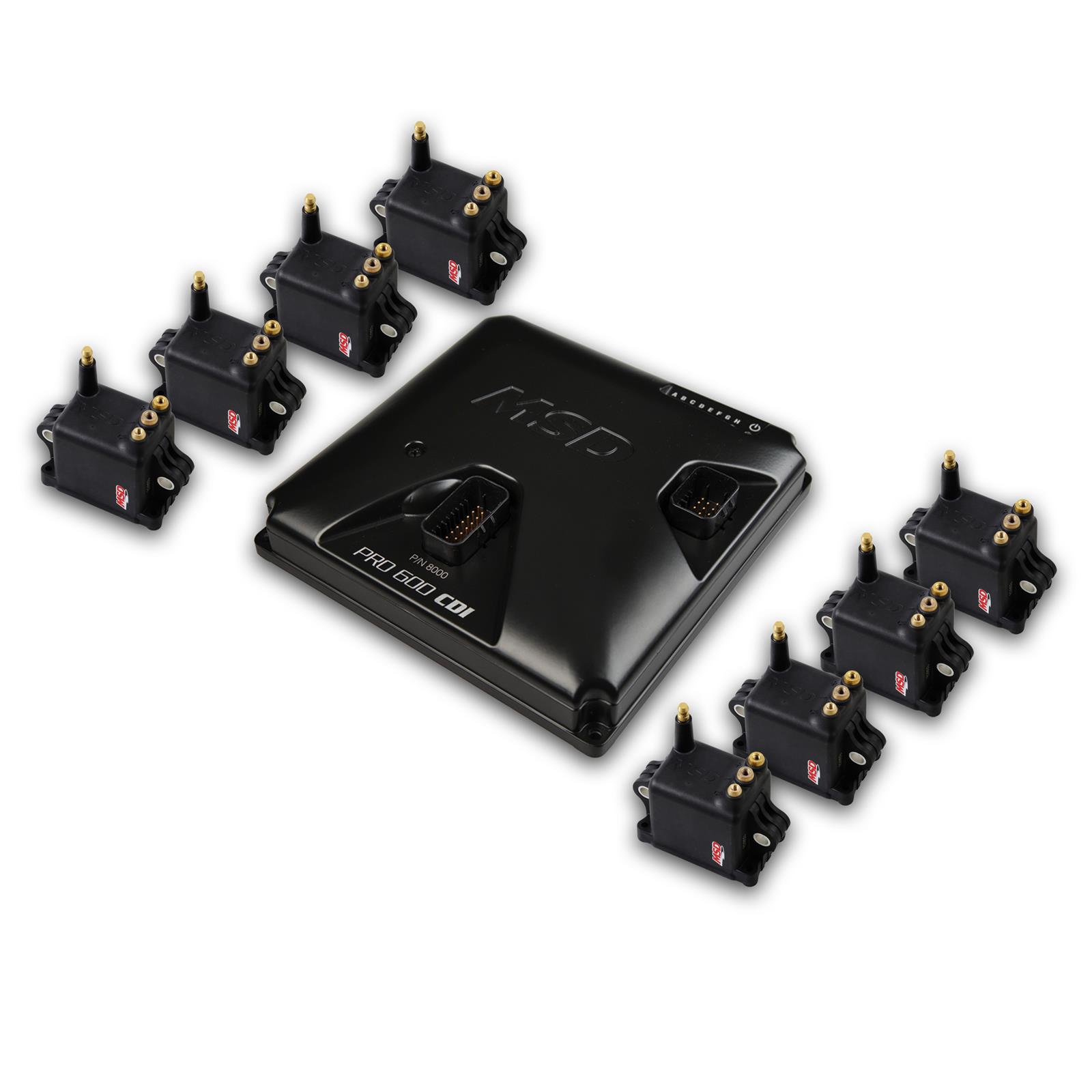

MSD Pro 600 CDI Ignition and High-Output Coil Kits 80003-8HO

MSD Pro 600 CDI Ignition and High-Output Coil Kits

When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you're leaving horsepower on the table. MSD Pro 600 CDI ignition kits with high-output coils answer this need.

The Pro 600 CDI ignitions provide unrivaled spark energy and dependability. They have built-in protection for accidental reverse battery connection, over temperature protection, and LED diagnostics that can identify an issue with individual coils should a problem arise. They also feature a programmable power setting to allow racers to switch between 250 to 400 millijoule outputs, or the industry-leading output of 680 millijoules via an activation wire or software, meaning that you can turn it down for the long haul and then set it to kill mode at the strip, making the Pro 600 ideal for a Drag Week-style car and really any no-compromise vehicle.

Perfectly complementing the Pro 600 ignition box in these MSD kits are high-output 8280 ignition coils, replacing the extremely capable 8232 coils used in the 8-channel capacitive discharge ignition kits. Available in red or black, the 8280 coils have the goods to back up their aesthetics with increased peak spark current, overall spark energy, and greater thermal efficiency. Designed for coil-near-plug engine management systems, the PRO 600 is also capable of easily converting any distributor-type ignition into a coil-near-plug system.

Additional features and specifications:

* Eight outputs of up to 680 millijoules of energy
* All necessary wiring harnesses included
* Continuous 600 millijoules operation without risk of failure from overheating
* High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
* Over 50 kV output voltage when used with MSD suggested coils
* Spark duration of greater than 300 microseconds
* 6 V minimum required for starting and running
* 12 V minimum required for 600 millijoules operation
* Maximum operating voltage of 22 V
* Direct plug-in to Holley EFI systems
* Compatible with most EFI systems, including 5 V or 12 V drivers
* Plug-in interface with MSD Power-Grid, Davis Profiler, and OEM LS-style coil harness
* Diagnostic LEDs help troubleshoot issues should they arise
* On-the-fly power output selection wire, selectable between low power and high power
* Fits most coil-per-plug engines up to eight cylinders (including four and six cylinders)
* Approved for NHRA Pro Mod Class
