Holley EFI 6.86 in. Pro Dash Touch Screens 553-112

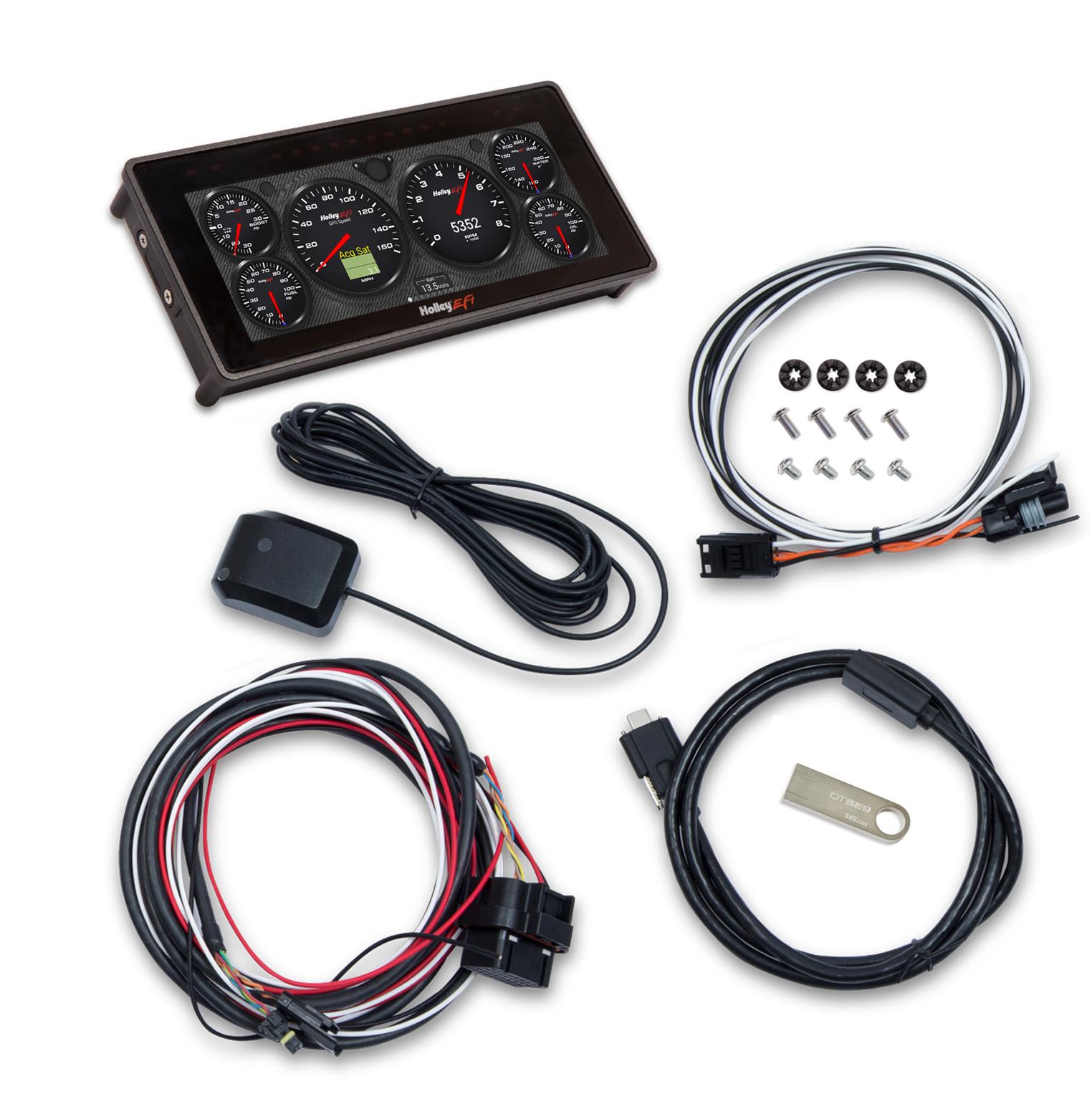

Holley EFI 12.3 in. Pro Dash Touch Screens

When your expensive engine, sponsorship, and reputation are on the line, trust your engine monitoring to Holley EFI 12.3 in. Pro Dash touch screens. Completely customizable for use in a variety of motorsports applications, they feature 12.3 in. 1280 x 480 resolution low-glare, high-brightness, high-contrast, full-color capacitive touch screens that are easy to view--even in full sun. They offer plug-and-play connection to most Holley EFI systems, and weather-resistant aluminum housings featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance with Pro Dash touch screens.

Features:

* Real-time ECU tuning allows you to make quick tune changes, without needing to hook up a laptop
* Capable of monitoring up to 238 real-time values such as rpm/TPS/boost
* 16 default background skins pre-loaded with unlimited options for importing custom layouts
* Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
* Virtual switch panel eliminates the need for external toggle switches
* Manual or auto-brightness features for easy viewing day or night
* Built-in GPS with odometer function (antenna included)
* On-screen datalog playback features allows you to review vital run information
* Expandable storage via USB
* No stylus required, capacitive touch, just like your smart phone
* User definable channel alarms and warnings
* Six 1/4 in.-28 mounting holes for surface or flush mounting with high-quality hardware
* USB keyboard and mouse functionality makes it quick and easy to setup new layouts
* 34-pin wiring harness contains power, ground, and CANbus connections
* Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs
* User defined alarms for any input
* Upgradable with future software enhancements
* Viewing area is 12.3 in. on the diagonal, 11.5 in. wide by 4.25 in. tall
* Dash weight is 3.29 lbs.
* Plug-and-play programmable shift light
