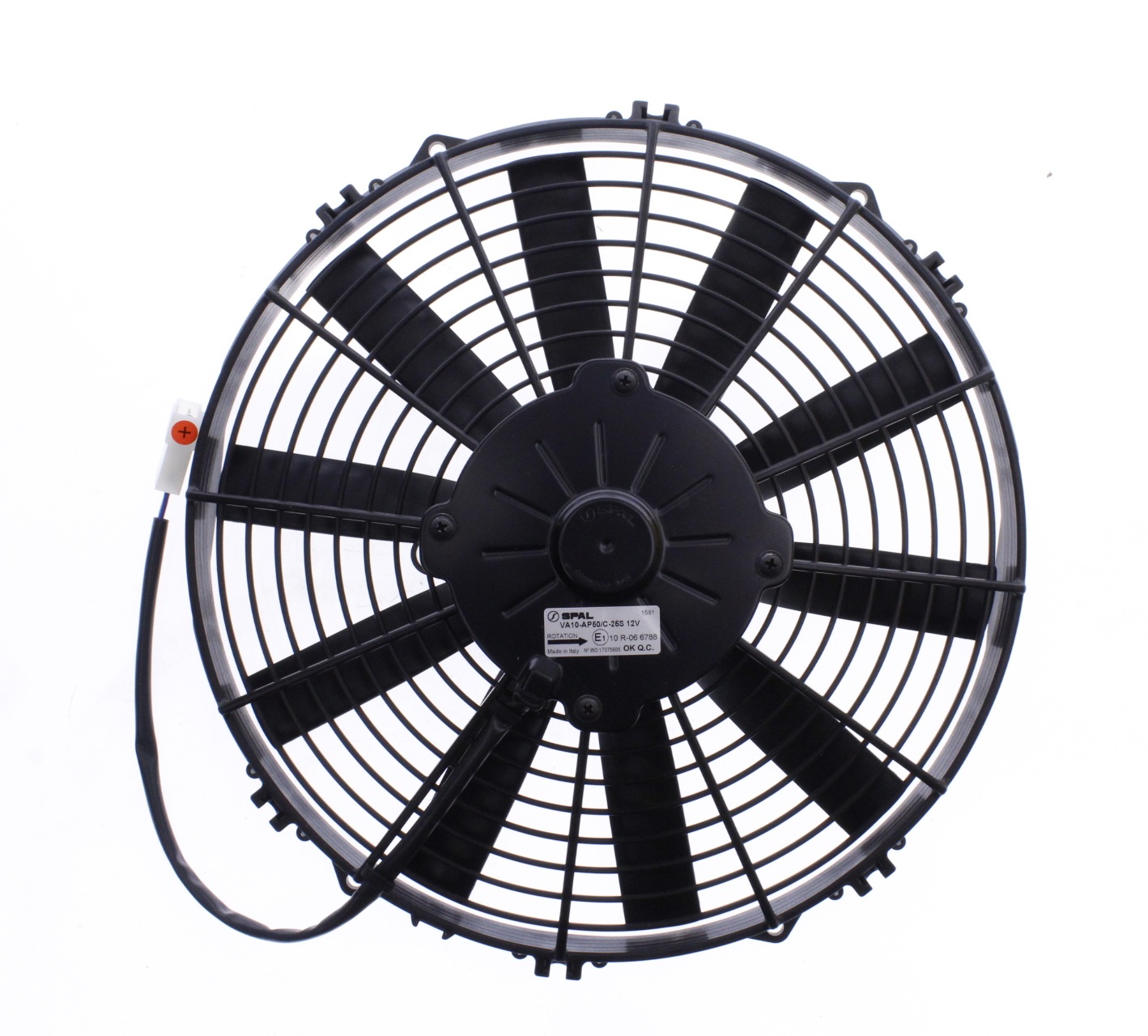

SPAL 12" motorsport - Push - 1009cfm

SPAL VA10‑AP50/C‑25S

Overview

Model: SPAL VA10‑AP50/C‑25S

Voltage: 12 V (tested at 13 V)

Airflow Direction: Push (blows air away from the mounting surface)

Blade Diameter: 305 mm (approximately 12 inches)

Overall Depth: ~62–63 mm

Performance Highlights

Maximum Airflow (at zero static pressure): ~1009 CFM (~1710 m³/h)

Typical Current Draw: ~8.2 A under no-load conditions

Design & Durability

Motor Protection: IP68 – fully sealed against dust and water

Construction: Rugged metal casing for durability; includes a standard connector and wire harness

Certifications: ISO 9001, ISO/TS 16949, ISO 14001

Mounting: Uses M5 bolts with ~3 Nm tightening torque

Additional Details

Weight: Approximately 1.5 kg (~3.3 lbs) per certain sources

Applications: Ideal for compact installations requiring powerful airflow—such as radiator cooling, condensers in HVAC systems, and performance engine setups
