SPAL 11" motorsport - Push - 885cfm

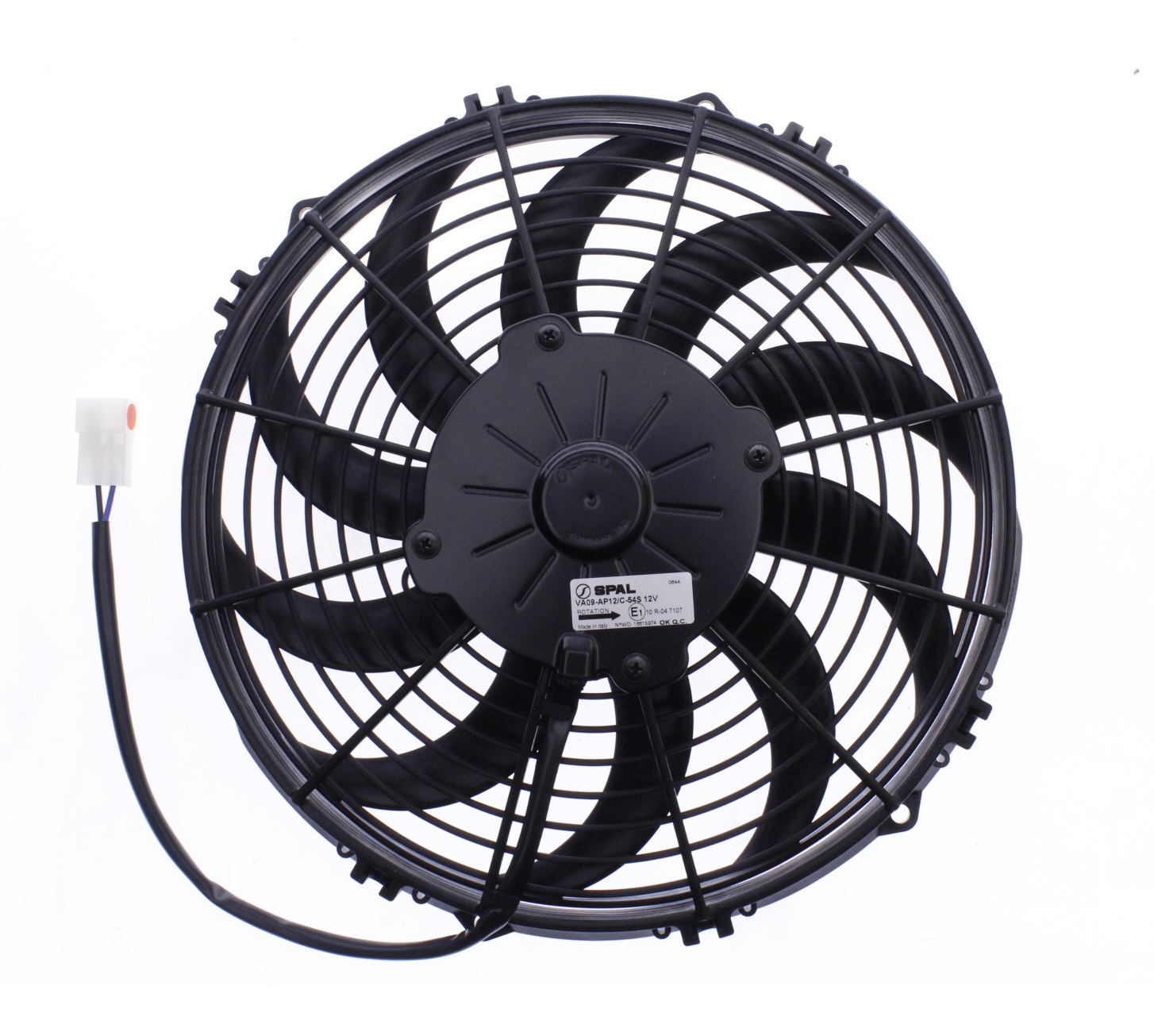

SPAL VA09‑AP12/C‑54S

The SPAL VA09‑AP12/C‑54S is a 12-volt axial blower fan designed for high-performance cooling in automotive, industrial, and motorsport applications. It’s built to push air (blowing) through a radiator or condenser and is often used where space is limited.

Key Specifications

Voltage: 12 V

Blade Diameter: 280 mm (11 inches)

Outer Diameter: Approx. 310 mm

Depth (Thickness): 51–53 mm

Airflow (at 0 static pressure): ~1500 m³/h (885 CFM)

Current Draw: ~7.7 A free running, up to ~8.5 A under load

Motor Type: Sealed waterproof motor (IP68 rated)

Blade Type: Curved blades for efficient and quiet airflow

Build: Durable design with robust materials (some versions feature metal housings)

Certifications: ISO 9001, ISO/TS 16949, ISO 14001

SPAL part number: 30100412

Cross references: Often found as Webasto 62080179A, and others
