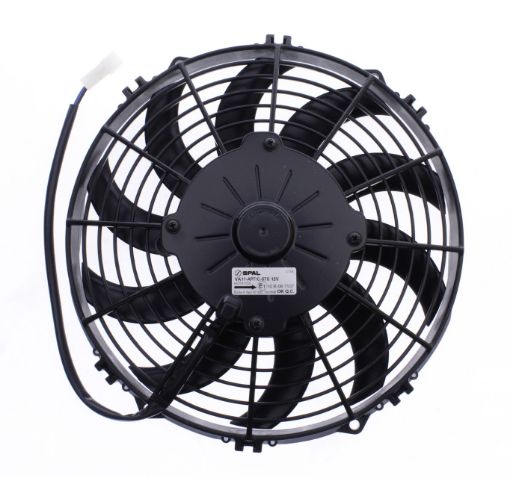

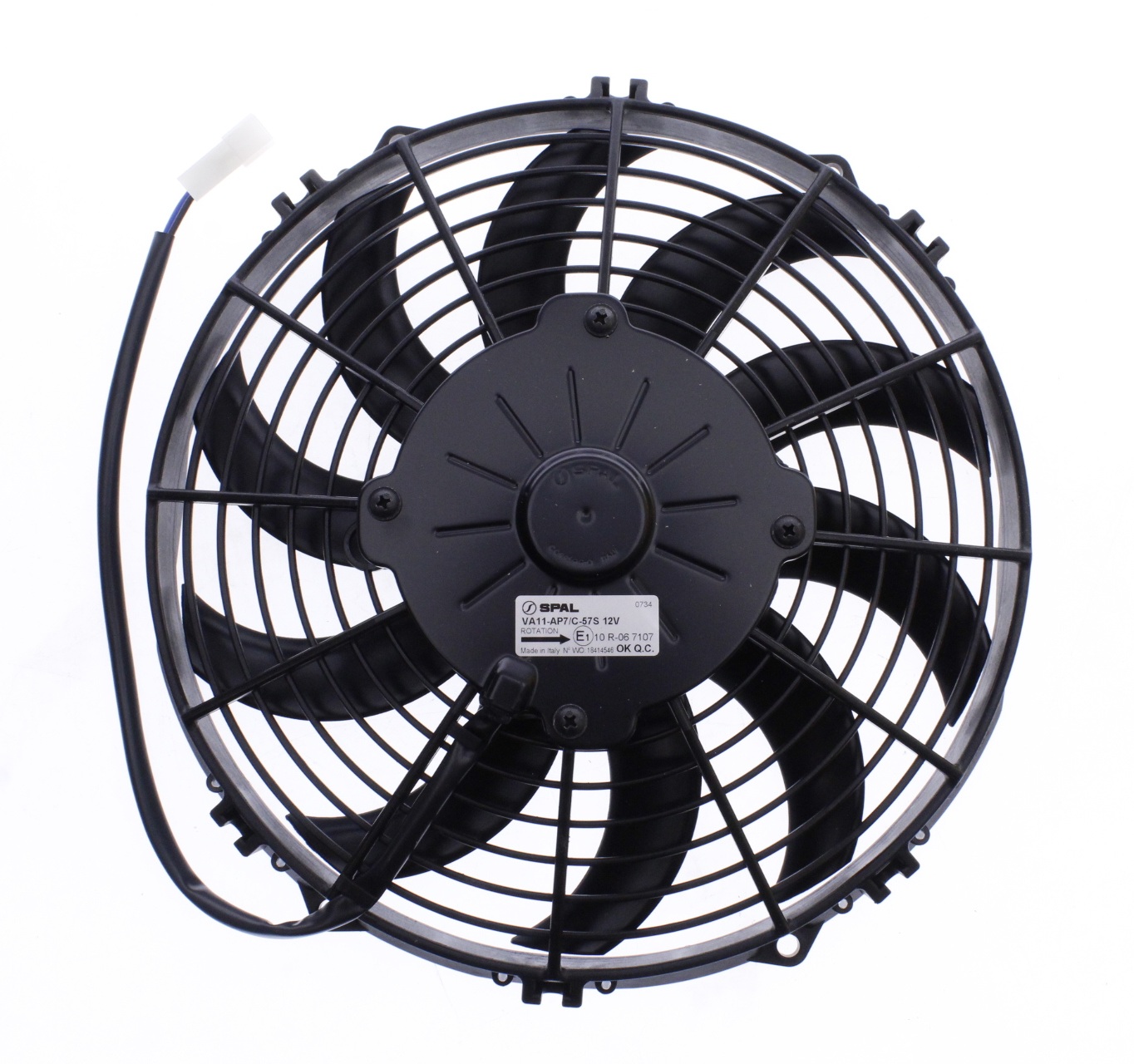

SPAL 10" motorsport - Push - 844cfm

SPAL VA11‑AP7/C‑57S

The SPAL VA11‑AP7/C‑57S is a 12 V axial cooling (radiator) fan made by SPAL Automotive, known for its high quality and performance in automotive, industrial, and specialty applications

Voltage: 12 V

Blade Diameter: 255 mm (10.0 in)

Overall / Housing Diameter: ~283.5–284 mm (∼10.55 in)

Depth: Approx. 51–52 mm (2 in)

~1430 m³/h (844 CFM) at 0 static pressure

Current Draw: 7.6 A at free air, increasing up to ~8.5 A under load

Airflow Direction: Push (blowing away from the mounting surface)

Curved blades for quieter airflow and efficient performance

IP68 waterproof motor, fully sealed against dust and water ingress
