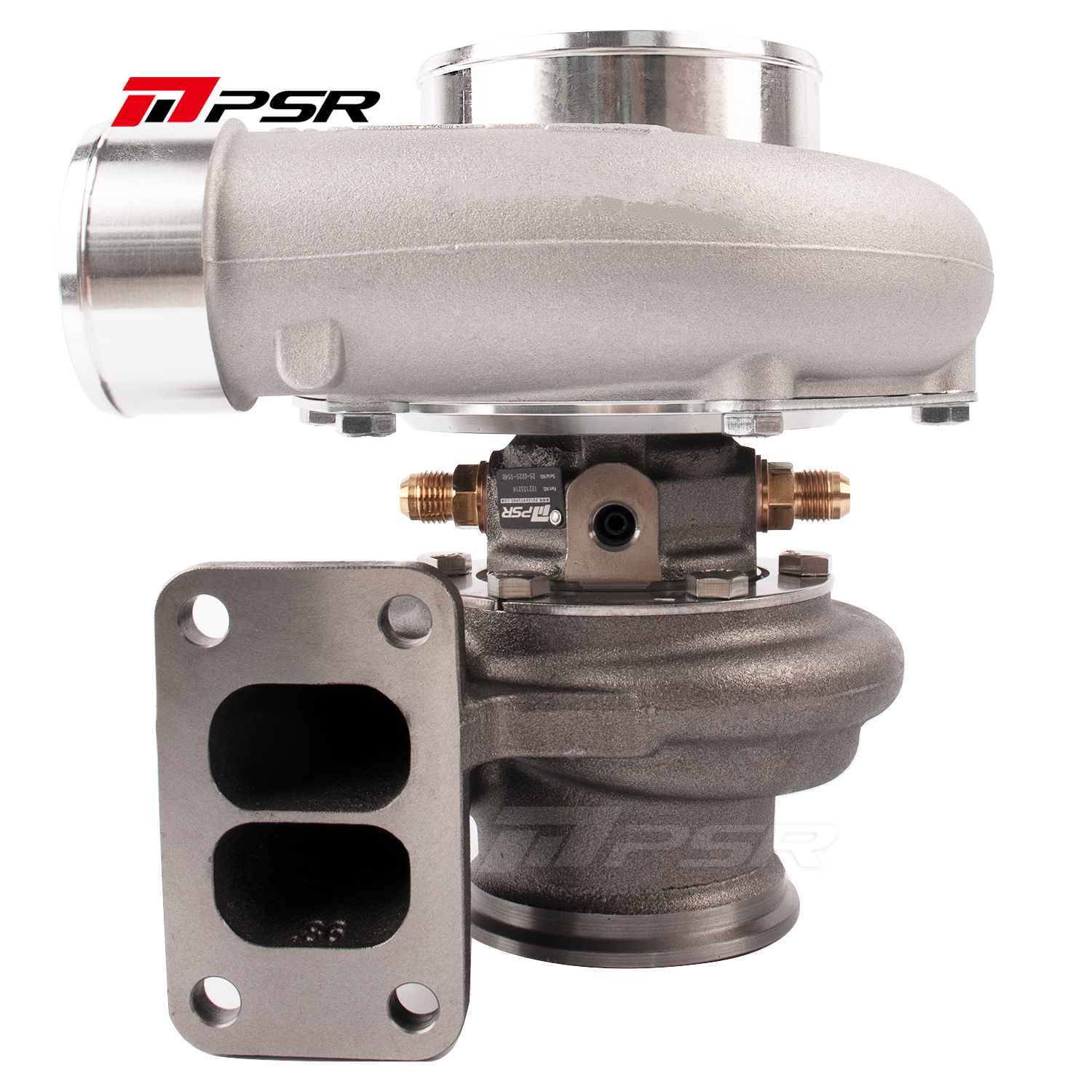

PSR3576 Gen2 Dual Ball Bearing Turbocharger

PSR3576 Gen2 Dual Ball Bearing Turbocharger

Dual Ceramic Ball Bearing System

9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

Inconel 713c 9 Blade Turbine Wheel

Gen2 Cover Integrated with the Speed Sensor Port

0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82, 1.06 A/R V-Band outlet, etc. turbine housings In option

V-Band Flange kit(s) for the exhaust housing included

Max Air Flow rate: 65 lb/min, rated @ 750 FWHP

Compressor Wheel: 58*76mm

Turbine Wheel: 68*62mm

Compressor Inlet: 4.0 Hose

Compressor Outlet: 2.0 Hose

Turbine Inlet: T3, T4, or 2.5″ V-Band

Turbine Outlet: 3″ V-Band (3.55″OD)

Oil Feed: -4 AN connect to the Oil Restrictor

Oil Drain: Std T3 Flange

Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
