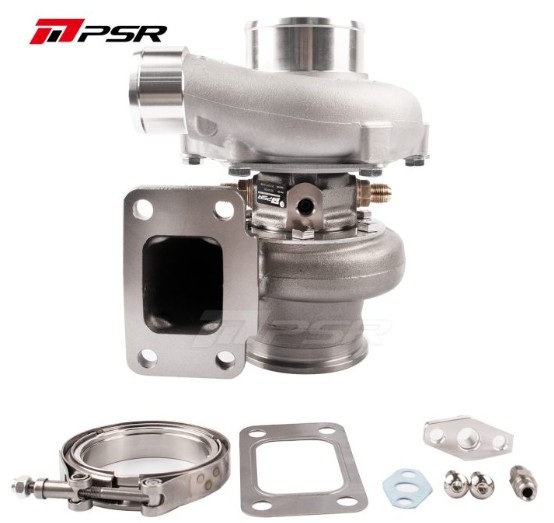

PSR3071 Gen2 Dual Ball Bearing Turbocharger

PSR3071 Gen2 Dual Ball Bearing Turbocharger

Dual Ceramic Ball Bearing System

8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

Inconel 713c 10 Blade Turbine Wheel

Gen2 Cover Integrated with the Speed Sensor Port

0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, 0.82, 1.03 A/R dual v-band stainless steel turbine housing etc. turbine housings in option

V-Band Flange kit(s) for the exhaust housing included

Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP

Compressor Wheel: 54*71mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: T3, T4, or 2.5″ V-Band

Turbine Outlet: 3″ V-Band (3.55″ OD)

Oil Feed: -4 AN connect to the Oil Restrictor

Oil Drain: Std T3 Flange

Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
