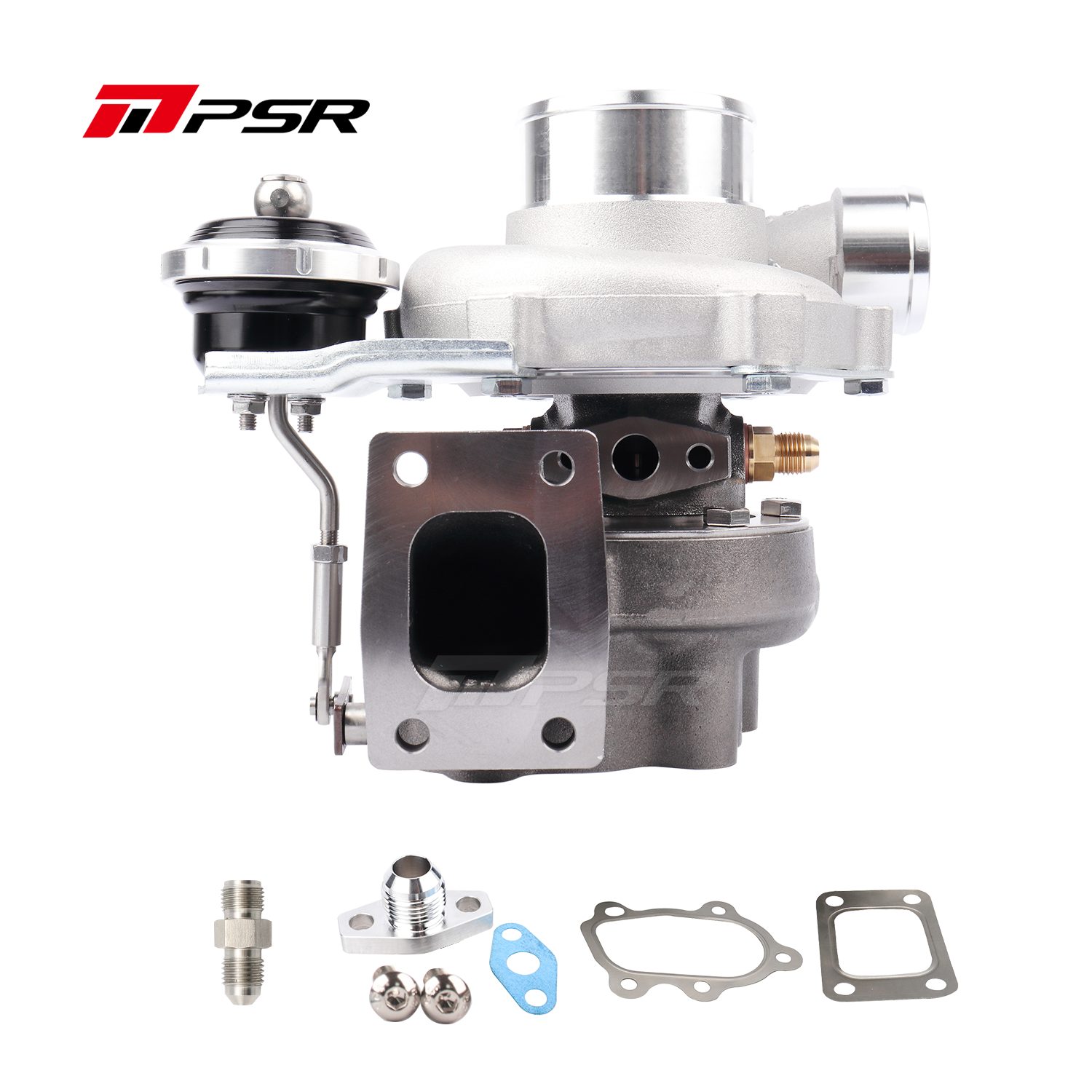

PSR2860 GEN2 Dual Ball Bearing Turbocharger

PSR2860 GEN2 Dual Ball Bearing Turbocharger

Dual Ceramic Ball Bearing System

8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

Inconel 713c 9-blade Turbine Wheel

Gen2 Cover Integrated with the Speed Sensor Port

0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.64 A/R dual V-BAND stainless steel, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option

V-Band Flange kit(s) for the exhaust housing included

Max Air Flow rate: ~40 lb/min, rated @ 475 FWHP

Compressor Wheel: 45.64/60.07/62mm

Turbine Wheel: 54/47mm

Compressor Inlet: 3″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: T25 or 2.5″ V-Band

Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)

Oil Feed: -4 AN connect to the Oil Restrictor

Oil Drain: Std T3 Flange

Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
