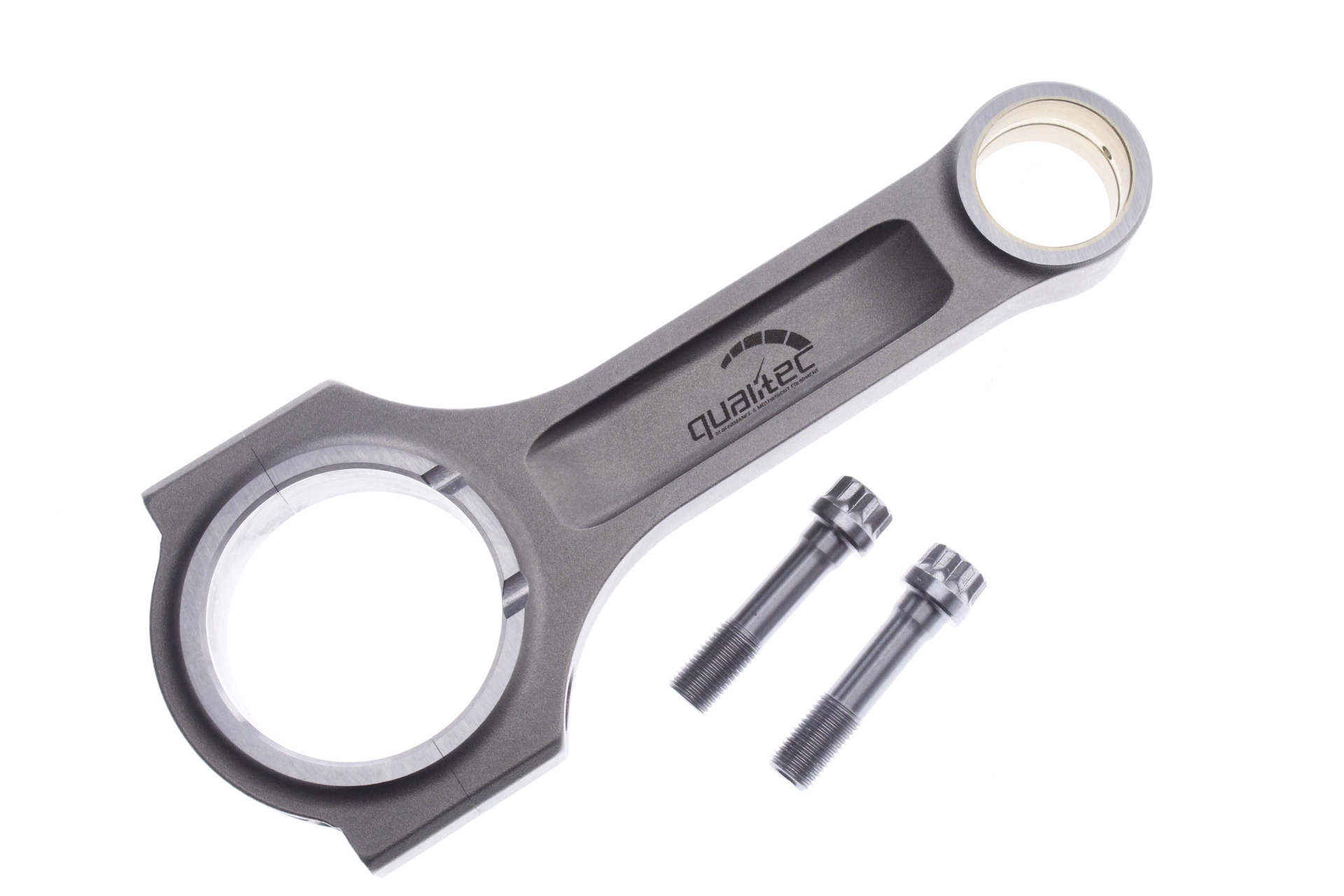

Mercedes Benz OM606 - Connecting Rods - 1000hp

• Center to Center: 148.7mm

• Wrist Pin Diameter: 28mm

• Big End Journal Width: 22m

• Big End Journal Diameter: 22m

• Rod Bolt Dimensions: 3/8"

• Forged 4340 material

• 28mm wrist pin works with all aftermarket 28mm pistons
• Forged from vacuum drawn 2 pieces 4340 chrome moly steel
• Upgraded I-beam design greatly increases strength and durability
• Combination tested to 1000HP on 6 cylinder engine
• Individual computer-optimized design to match unique MERCEDES BENZ engine applications
• Honed to exacting tolerances within 250 millionths of an inch
• Each connecting rod set is balanced to weights within +/- 1 gram
• Dimensionally and magnaflux inspected to ensure extreme reliability
• Multi-stage heat treated for dimensional stability and fatigue life
