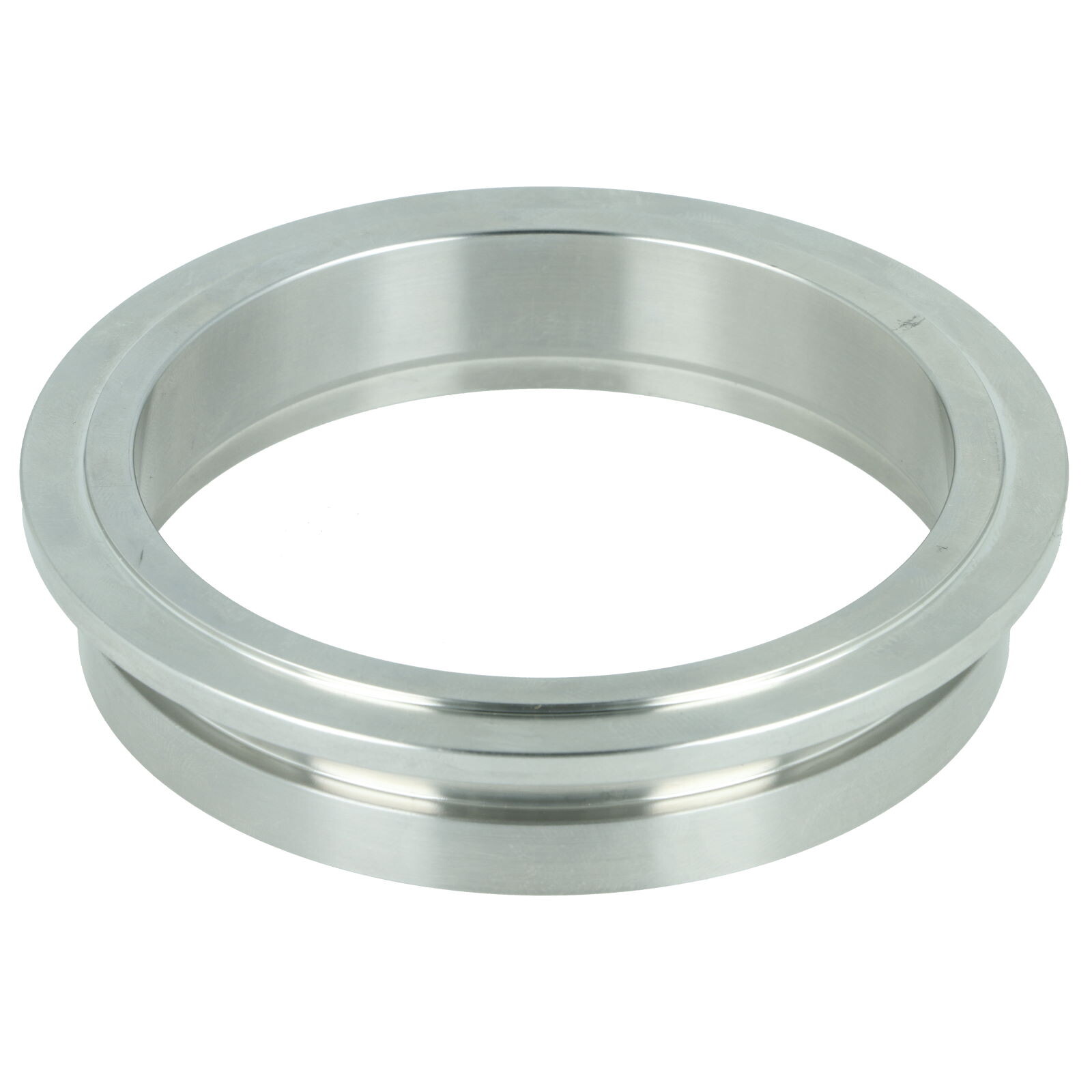

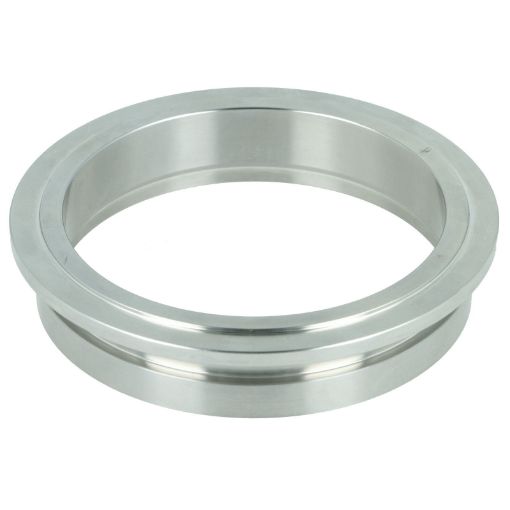

Flange (outlet) for V-Band turbine housings Garrett G40 / G42 / G45

Leverandør: Turboz
Vær den første til at bedømme dette produkt
Outlet for turbine - Outer diameter: 108,6mm.  - Pipe diameter: 89mm. - Male OD diameter: 95,3mm.
Varenummer: 1.00213.02042

Lagerstatus: Bestillingsvare

375,00 (DKK) inkl. moms
i h

Stainless steel V-Band flange, fits for the outlet (downpipe side) of the Garrett Ni-resist singlescroll V-Band turbine housings (see list below). Fits for the outlet of  Garrett G40 / G42 / G45 single scroll V-Band exhaust housings.

Outer diameter: 108,6mm.
Pipe diameter: 89mm.
Male OD diameter: 95,3mm.

Application: Outlet of the V-Band turbine housing

Material: Stainless steel

Fits for Garrett G40 / G42 / G45 turbine housings (outlet / manifold side):

G40-900 / G40-1150:
- 757707-0027
- 757707-0028
- 757707-0029
- 757707-0030

G42-1200c / G42-1200 / G42-1450:
- 757707-0011
- 757707-0012
- 757707-0013

G45-1125 / G45-1350 / G45-1500:
- 757707-0019
- 757707-0020
- 757707-0021
- 757707-0022

Fits for Garrett G40 / G42 / G45 complete turbocharger (outlet / manifold side):

All G40-900 / G40-1150
G42-1200 Compact:
- 879779-5001S
- 879779-5002S
- 879779-5003S

G42-1200:
- 879779-5007S
- 879779-5008S
- 879779-5009S

G42-1450:
- 879779-5013S
- 879779-5014S
- 879779-5015S

All G45-1125 / G45-1350 / G45-1500

Produkt specifikationer
Tommer / mm. 3.50" / 89,0mm
Flange type V-Band
