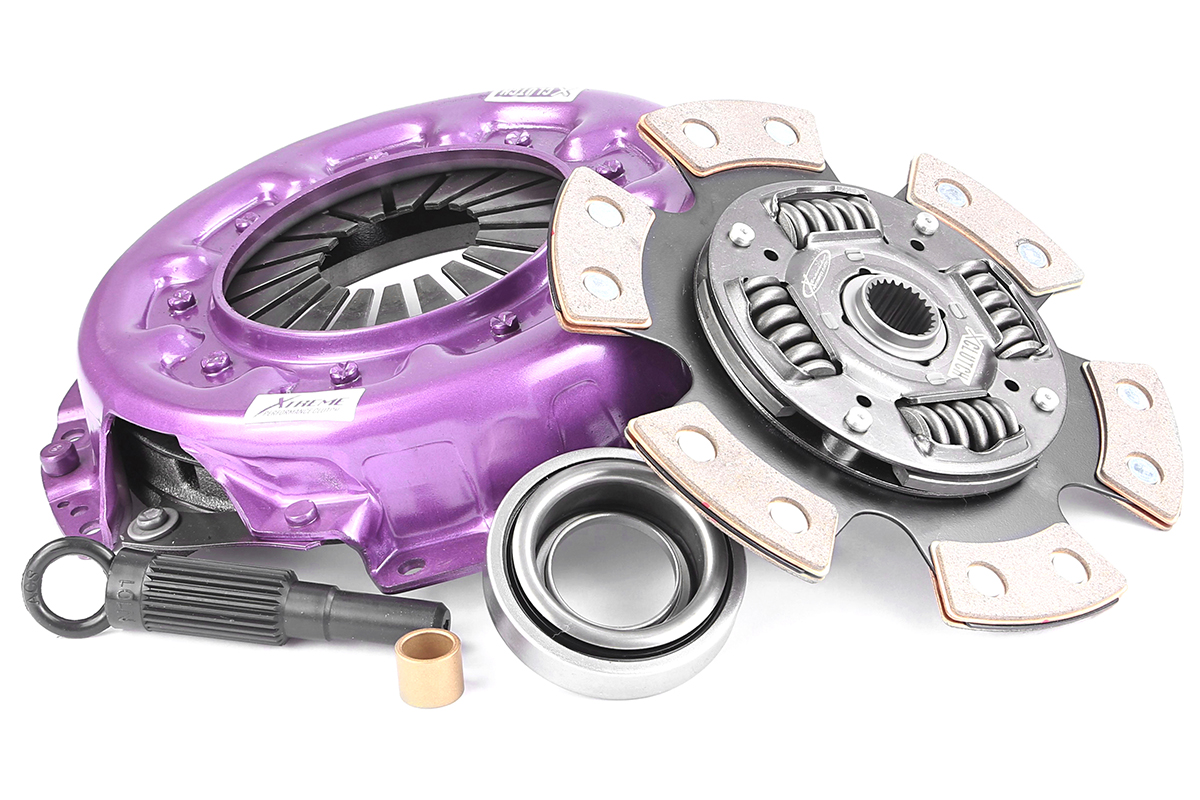

Xtreme Performance - sprung ceramic kit /-1B
Recommended for: Motorsport Applications
These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
Specifications:
Torque capacity 570Nm
Clamp load 800kg 35% Increased over standard
Sprung Ceramic Friction Disc
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm): 240
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Torque (Nm): 570
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2
Tech Bulletins
Clamp Load: 800Kg (35% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Weight [KG]: 9.43
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
|
Nissan
|
180SX
|
1991.04-1994.03
|
S13 | 2.0
|
SR20DE 1998 Petrol 119 kW 162 BHP (1991.04 - 1994.03)
|
|
Nissan
|
180SX
|
1992.01-1997.01
|
S13 | 2.0
|
SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01)
|
|
Nissan
|
200SX
|
1993.10-1998.12
|
S14 | 2.0
|
SR20DE 1998 Petrol 119 kW 162 BHP (1993.10 - 1998.12)
|
|
Nissan
|
200SX
|
1993.10-1999.12
|
S14 | 2.0 i 16V Turbo
|
SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)
|
|
Nissan
|
200SX
|
1994.04-1999.09
|
S14 | 2.0 Turbo
|
SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09)
|
|
Nissan
|
Silvia
|
1991.01-1993.09
|
S13 | 2.0
|
SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09)
|
|
Nissan
|
Silvia
|
1991.01-1993.09
|
S13 | 2.0
|
SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09)
|
|
Nissan
|
Silvia
|
1991.04-1994.03
|
S110 | 1.8
|
SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03)
|
|
Nissan
|
Silvia
|
2000.07-2001.12
|
S15 | 2.0
|
SR20DE 1998 Petrol 118 kW 160 BHP (2000.07 - 2001.12)
|
|
Nissan
|
Silvia
|
2000.07-2001.12
|
S15 | 2.0
|
SR20DE 1998 Petrol 121 kW 165 BHP (2000.07 - 2001.12)
|
