Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.
Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.
Specifications:
Torque capacity 560Nm
Clamp load 1150kg 40% Increased over standard
Organic Friction Discs
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?

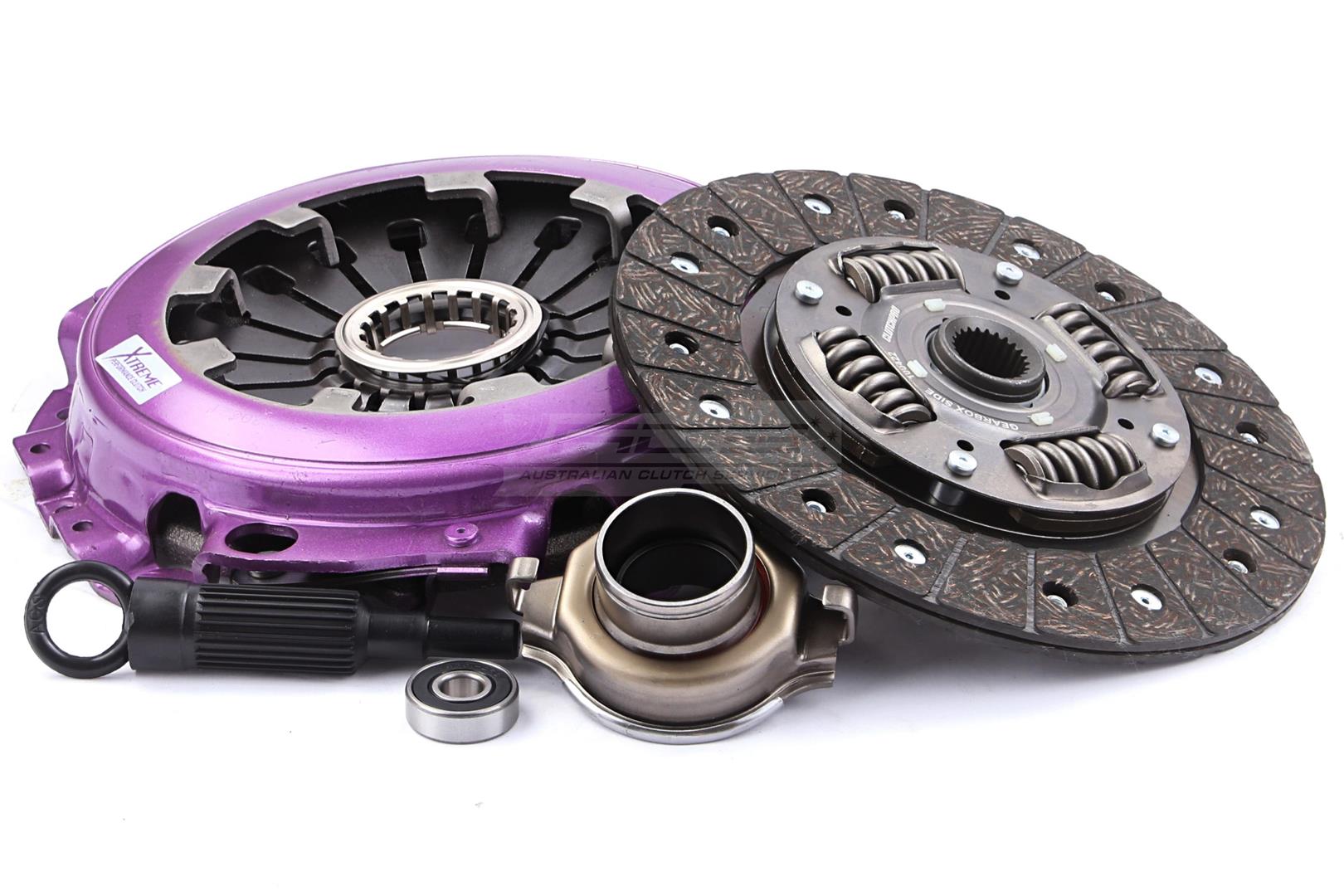

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 560
Flywheel Step: Flat
Design: Single Plate
Stage: Stage 1
Clamp Load: 1150KG (40% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation
Weight [KG]: 7.95
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
Note
|
|
Subaru
|
Forester
|
1998.06-2001.04
|
2.0 S Turbo AWD (SF5)
|
EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Forester
|
2001.04-2002.09
|
2.0 S Turbo AWD (SF5)
|
EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Forester
|
2002.02-2005.05
|
2.0 S Turbo AWD (SG5)
|
EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Forester
|
2003.12-2005.05
|
2.5 AWD (SG9)
|
EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Forester
|
2005.05-2005.09
|
2.5 Prodrive Performance Pack AWD
|
EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
1994.03-2000.12
|
2.0 Turbo GT AWD (GC8)
|
EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
1994.03-2000.12
|
2.0 i Turbo AWD (GF8)
|
EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
1996.12-2000.12
|
2.0 Turbo AWD (GC8)
|
EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
1998.06-2000.12
|
2.0 Turbo GT AWD (GC8)
|
EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
1998.06-2000.12
|
2.0 Turbo GT AWD (GF8)
|
EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
1998.09-2000.09
|
2.0 AWD (GC8)
|
EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
2000.12-2005.12
|
2.0 Turbo AWD (GGA)
|
EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
2000.12-2005.12
|
2.0 WRX Turbo AWD (GDA) 5 speed
|
EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
2001.09-2005.12
|
2.0 WRX AWD (GGA)
|
EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
2001.11-2005.07
|
2.0 WRX STi AWD (GDB)
|
EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
2002.12-2006.09
|
2.0 WRX Turbo AWD (GGA)
|
EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Impreza
|
2004.02-2005.07
|
2.0 WRX STi AWD
|
EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Legacy
|
1992.05-1994.07
|
2000 Turbo 4WD (BC5)
|
EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Legacy
|
1992.05-1994.07
|
2000 Turbo Super 4WD (BF5)
|
EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Legacy
|
2002.02-2003.06
|
2.0 AWD (BE5)
|
EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06)
|
Suits 5 Speed Gearbox
|
|
Subaru
|
Legacy
|
2002.06-2003.08
|
2.0 AWD (BE5)
|
EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08)
|
Suits 5 Speed Gearbox
|
