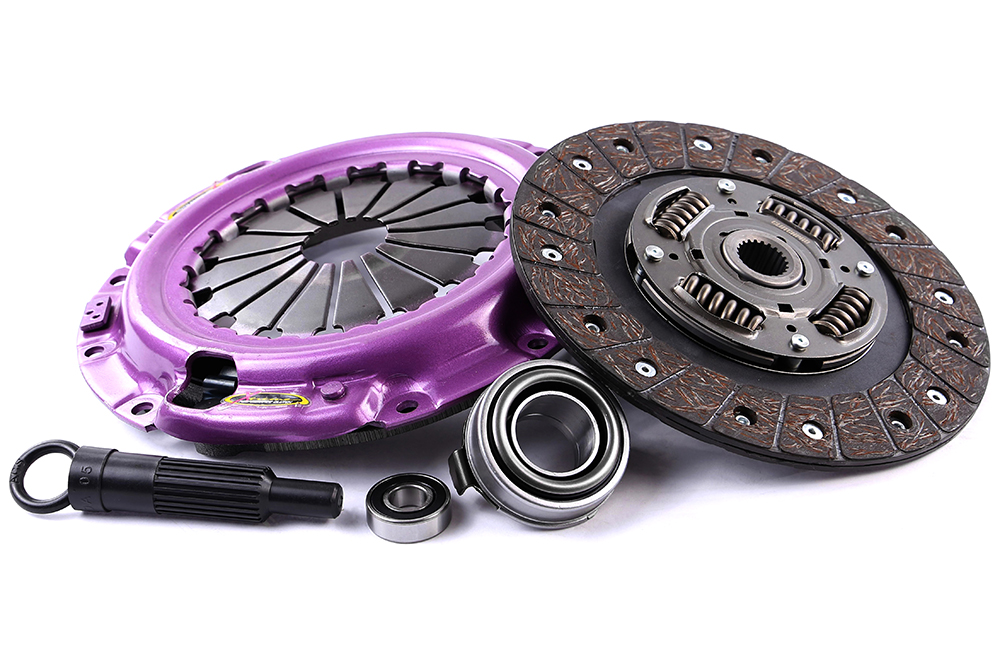

Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.
Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.
Specifications:
Torque capacity 300Nm
Clamp load 700kg 40% Increased over standard
Organic Friction Discs
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 22
Clutch Disc Spline Diameter (mm): 24.5
Torque (Nm): 300
Flywheel Step: -20.0mm/.787""
Design: Single Plate
Stage: Stage 1
Tech Bulletins
Clamp Load: 700Kg (40% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation
Weight [KG]: 5.21
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
|
Mazda
|
MX-5
|
1998.01-2002.07
|
1.8 (NB8C)
|
BP6J, BP5A 1839 Petrol 103 kW 140 BHP (1998.01 - 2002.07)
|
|
Mazda
|
MX-5
|
1998.05-2005.10
|
1.8 16V (NB8C)
|
BP6J, BP5A 1840 Petrol 103 kW 140 BHP (1998.05 - 2005.10)
|
|
Mazda
|
MX-5
|
2000.11-2005.10
|
1.8 16V (NB8C)
|
BP6J 1840 Petrol 102 kW 139 BHP (2000.11 - 2005.10)
|
|
Mazda
|
MX-5
|
2000.11-2005.10
|
1.8 16V (NB8C)
|
BP-ZE, BP6J 1840 Petrol 107 kW 146 BHP (2000.11 - 2005.10)
|
|
Mazda
|
MX-5
|
2002.01-2002.10
|
1.8 i Turbo (NB)
|
BP8K 1840 Petrol 157 kW 214 BHP (2002.01 - 2002.10)
|
|
Mazda
|
MX-5
|
2002.04-2005.10
|
1.8 i (NB8C)
|
BP4W 1840 Petrol 113 kW 154 BHP (2002.04 - 2005.10)
|
|
Mazda
|
MX-5
|
2002.04-2005.10
|
1.8 i Turbo (NB)
|
BP Turbo, BP8K 1840 Petrol 136 kW 185 BHP (2002.04 - 2005.10)
|
