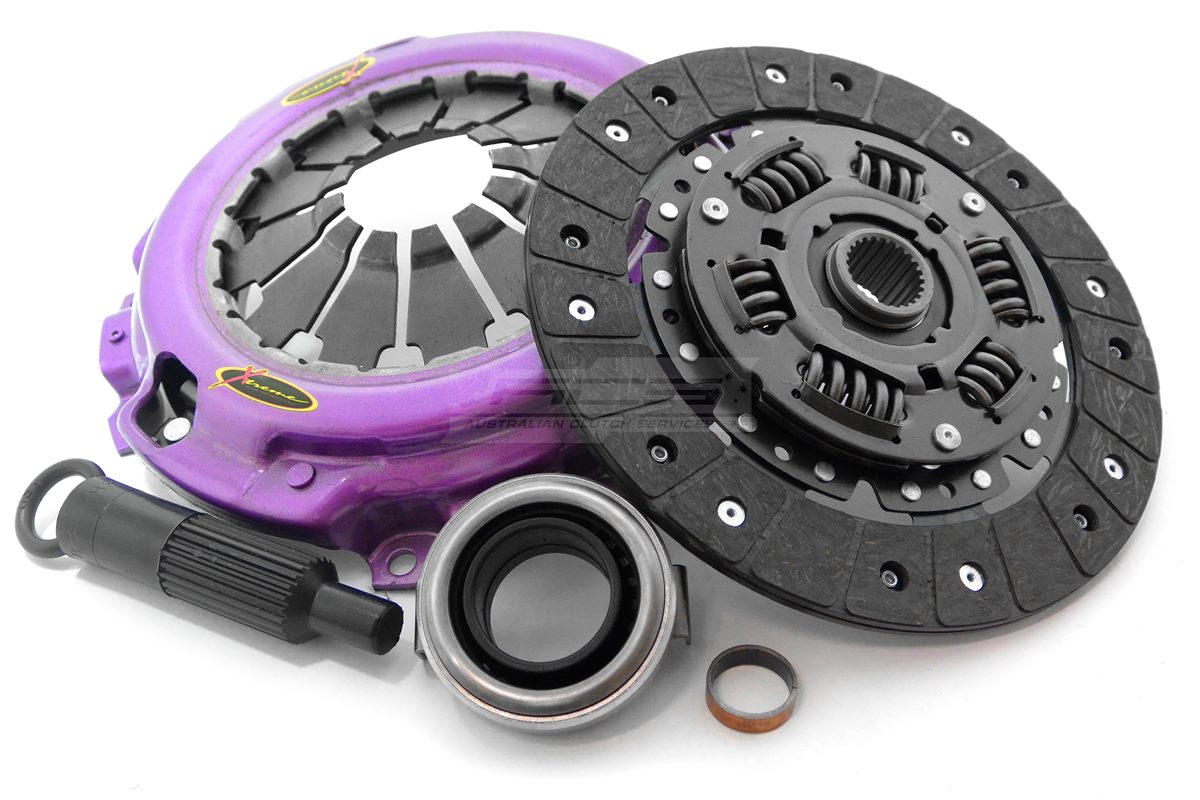

Clutch Kit - Xtreme Performance Heavy Duty Organic 280Nm 820kg - KHN22022-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Torque capacity 280Nm

Clamp load 820kg Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 280
Flywheel Step: +1.0mm/.040""
Design: Single Plate
Stage: Stage 1
Tech Bulletins
Clamp Load: 820Kg
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count: Additional infotmation
Weight [KG]: 5.61
