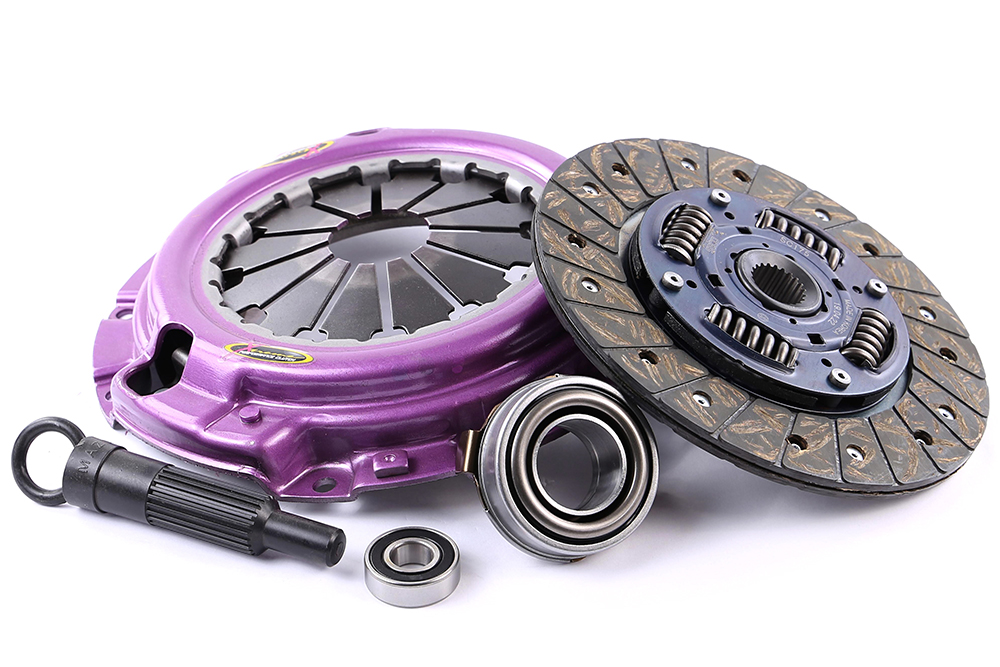

Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.
Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.
Specifications:
Torque capacity 210Nm
Clamp load 630kg 50% Increased over standard
Organic Friction Discs
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 22
Clutch Disc Spline Diameter (mm): 24.5
Torque (Nm): 210
Flywheel Step: +.5mm/.020""
Design: Single Plate
Stage: Stage 1
Tech Bulletins
Clamp Load: 630Kg (50% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation
Weight [KG]: 5.13
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
|
Mazda
|
MX-5
|
1990.05-1994.01
|
1.6 (NA6C)
|
B64F 1597 Petrol 85 kW 115 BHP (1990.05 - 1994.01)
|
|
Mazda
|
MX-5
|
1998.05 - 2005.10
|
1.6 16V (NB6C)
|
B6MC, B6MU 1597 Petrol 81 kW 110BHP (1998.05 - 2005.10)
|
