Xtreme Outback - Heavy duty sprung organic kit /-1A
Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.
Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.
Specifications:
Torque capacity 620Nm
Clamp load 1300Kg 55% Increased over standard
Organic Friction Discs
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories
Xtreme Outback
Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.
Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

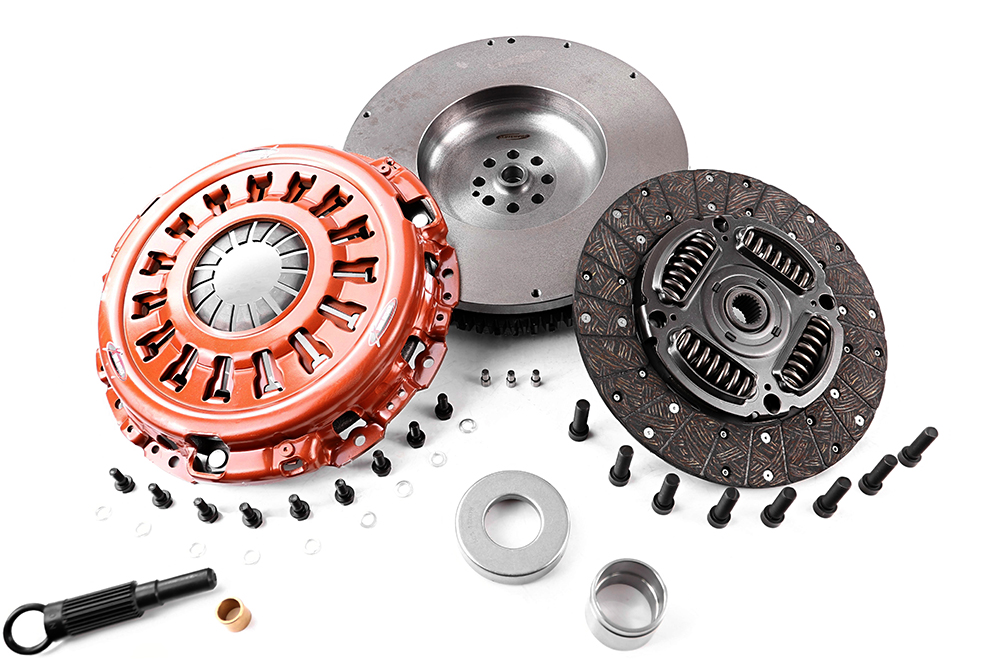

What's in the Box?
Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Torque (Nm): 620
Clamp Load: 1300KG (55% inc.)
Flywheel Step: Flat
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25,4
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Diameter [mm]: 275
Stage: Stage 1
Weight [KG]: 35.84
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
|
Nissan
|
NV350
|
2012.06-2017
|
E26 | 2.5 dCi
|
YD25DDTi 2488 Diesel 95 kW 129 BHP (2012.06 - 2017)
|
|
Nissan
|
NV350 / CARAVAN
|
2012.05-2017
|
2.5 dCi
|
YD25DDTi 2488 Diesel 95 kW 129 BHP (2012.05 - 2017)
|
|
Nissan
|
Navara
|
2005.07-2015
|
D40 | 2.5 dCi 4WD
|
YD25DDTi 2488 Diesel 128 kW 174 BHP (2005.07 - 2015)
|
|
Nissan
|
Navara
|
2005.12-2015
|
D40 | 2.5 dCi
|
YD25DDTi 2488 Diesel 128 kW 174 BHP (2005.12 - 2015)
|
|
Nissan
|
Navara
|
2006.10-2015
|
D40 | 2.5 dCi
|
YD25DDTi 2488 Diesel 120 kW 163 BHP (2006.10 - 2015)
|
|
Nissan
|
Navara
|
2006.10-2015
|
D40 | 2.5 dCi 4WD
|
YD25DDTi 2488 Diesel 126 kW 171 BHP (2006.10 - 2015)
|
|
Nissan
|
Navara
|
2007.01-2015
|
D40 | 2.5 dCi 4WD
|
YD25DDTi 2488 Diesel 106 kW 144 BHP (2007.01 - 2015)
|
|
Nissan
|
Navara
|
2009.12-2015
|
D40 | 2.5 dCi 4WD (D40TT. D40T. D40M. D40BB)
|
YD25DDTi 2488 Diesel 140 kW 190 BHP (2009.12 - 2015)
|
|
Nissan
|
Pathfinder
|
2010.08-2013
|
R51 | 2.5 dCi 4WD
|
YD25DDTi 2488 Diesel 140 kW 190 BHP (2010.08 - 2013)
|
