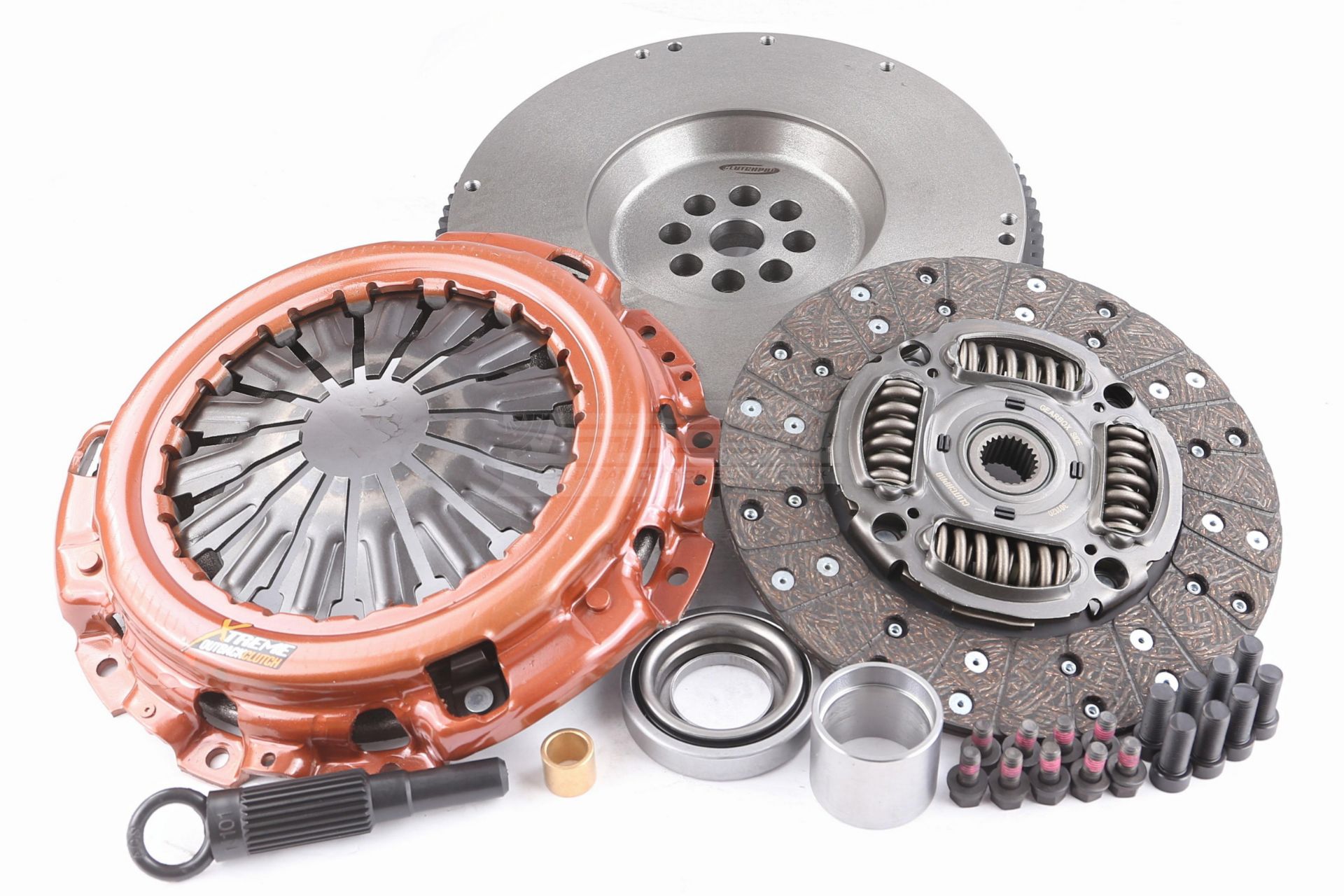

Clutch Kit - Xtreme Outback Heavy Duty Organic Incl Flywheel 620Nm 1250Kg (25% inc.) - KNI25509-1A

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Torque capacity 620Nm

Clamp load 1250Kg 25% Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm): 620
Clamp Load: 1250KG (25% inc.)
Flywheel Step: Flat
Clutch Disc Diameter (mm): 250
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25,4
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Diameter [mm]: 250
Stage: Stage 1
Tech Bulletins: TSB-NI140
Tech Bulletins: TSB-SMF02
Weight [KG]: 28
