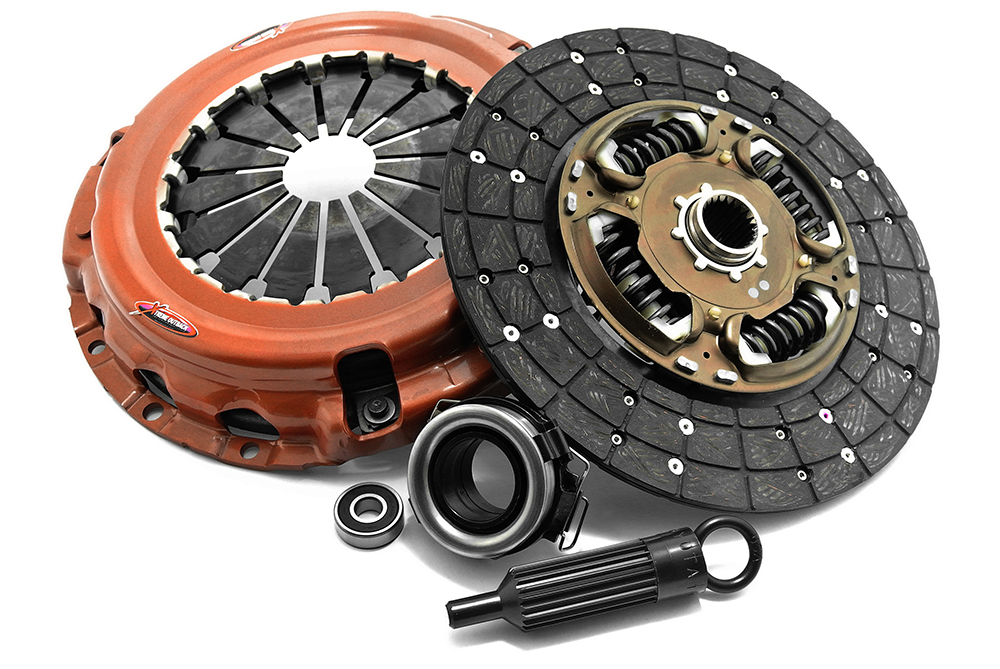

Xtreme Outback - Heavy duty sprung organic kit /-1A
Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.
Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.
Specifications:
Torque capacity 440Nm
Clamp load 980Kg 20% Increased over standard
Organic Friction Discs
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories
Xtreme Outback
Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.
Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.
What's in the Box?
Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.'
Torque (Nm): 440
Clamp Load: 980KG (20% inc.)
Flywheel Step: -4.2mm
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29,8
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Diameter [mm]: 280
Stage: Stage 1
Weight [KG]: 11.41
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
Note
|
Details
|
|
Toyota
|
Fortuner
|
2004.06-2015.05
|
3.0 D 4WD (KUN51)
|
1KD-FTV 2982 Diesel 120 kW 163 BHP (2004.06-2015.05)
|
08/2008 - 06/2013
|
VIN: KUN51, KUN61
|
|
Toyota
|
Fortuner
|
2009.08-2015.05
|
3.0 D 4WD (KUN51_)
|
1KD-FTV 2982 Diesel 126 kW 171 BHP (2009.08-2015.05)
|
Until 06/2013
|
VIN: KUN51, KUN61
|
|
Toyota
|
Hilux
|
2005.02-2006.08
|
3.0 D-4D 4WD (KUN26)
|
1KD-FTV 2982 Diesel 120 KW 163 BHP (2005.02 - 2006.08)
|
Suits 275mm Clutch-upgrade Flywheel
|
|
|
Toyota
|
Hilux
|
2005.02-2015
|
3.0 D-4D (KUN16R)
|
1KD-FTV 2982 Diesel 126 KW 171 BHP (2005.02 - 2015)
|
From 08/2008
|
|
|
Toyota
|
Hilux
|
2005.02-2015
|
3.0 D-4D 4WD (KUN26)
|
1KD-FTV 2982 Diesel 126 KW 171 BHP (2005.02 - 2015)
|
From 08/2008
|
|
|
Toyota
|
Hilux
|
2005.03-2015.05
|
2.5 D-4D 4WD (KUN15, KUN10)
|
2KD-FTV 2494 Diesel 75 KW 102 BHP (2005.03 - 2015.05)
|
From 07/2011
|
|
|
Toyota
|
Hilux
|
2005.03-2015.05
|
2.5 D-4D 4WD (KUN25)
|
2KD-FTV 2494 Diesel 75 KW 102 BHP (2005.03 - 2015.05)
|
From 07/2011
|
|
|
Toyota
|
Hilux
|
2005.03-2015.05
|
3.0 D-4D (KUN26)
|
1KD-FTV 2982 Diesel 120 KW 163 BHP (2005.08 - 2015.05)
|
|
|
|
Toyota
|
Hilux
|
2005.06-2015.05
|
2.5 D-4D 4WD (KUN15_, KUN15R)
|
2KD-FTV 2494 Diesel 88 KW 120 BHP (2005.06 - 2015.05)
|
From 07/2011
|
|
|
Toyota
|
Hilux
|
2005.08-2006.10
|
2.5 D-4D 4WD (KUN15)
|
2KD-FTV 2494 Diesel 65 KW 88 BHP (2005.08 - 2006.10)
|
Suits 275mm Clutch-upgrade Flywheel
|
|
|
Toyota
|
Hilux
|
2005.08-2015.05
|
3.0 D-4D (KUN16)
|
1KD-FTV 2982 Diesel 120 KW 163 BHP (2005.08 - 2015.05)
|
From 08/2008
|
|
|
Toyota
|
Hilux
|
2005.08-2015.09
|
3.0 D-4D (KUN26)
|
1KD-FTV 2982 Diesel 126 KW 171 BHP (2005.08 - 2015.09)
|
From 08/2008
|
|
|
Toyota
|
Hilux
|
2006.06-2015.05
|
2.5 D-4D 4WD (KUN25_, KUN25R)
|
2KD-FTV 2494 Diesel 88 KW 120 BHP (2006.06 - 2015.05)
|
From 07/2011
|
|
|
Toyota
|
Hilux
|
2006.08-2015.05
|
3.0 D-4D (KUN16)
|
1KD-FTV 2982 Diesel 126 KW 171 BHP (2006.08 - 2015.05)
|
From 08/2008
|
|
|
Toyota
|
Hilux
|
2007.12-2015.05
|
2.5 D-4D 4WD (KUN25)
|
2KD-FTV 2494 Diesel 106 KW 144 BHP (2007.12 - 2015.05)
|
From 07/2011
|
|
|
Toyota
|
Hilux
|
2008.05-2012.12
|
3.0 D-4D (KUN26)
|
1KD-FTV 2982 Diesel 145 KW 197 BHP (2008.05 - 2012.12)
|
From 08/2008
|
