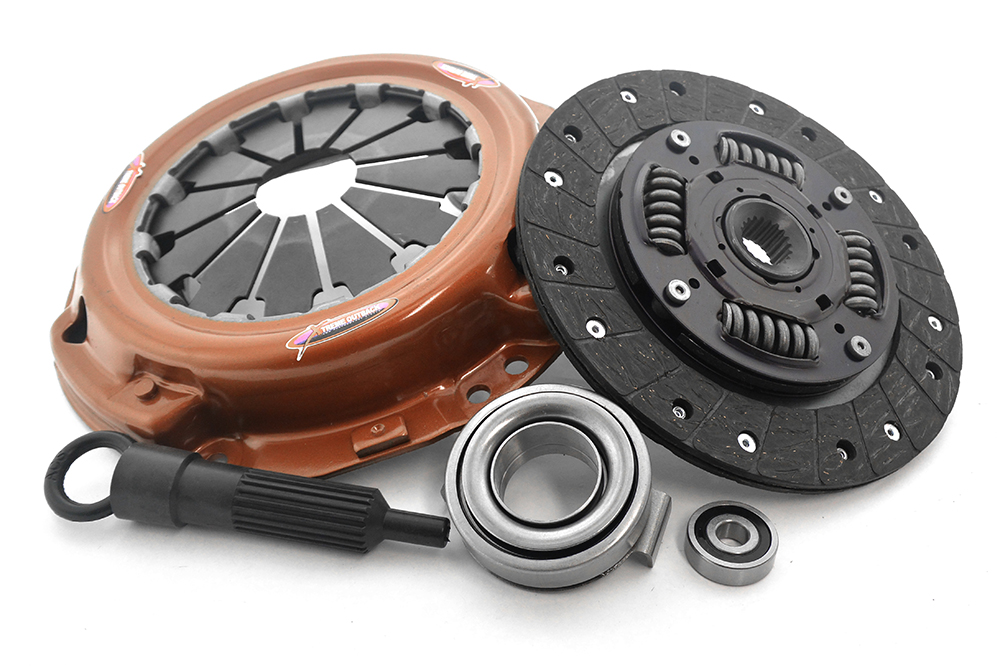

Clutch Kit - Xtreme Outback Heavy Duty Organic 250Nm 550Kg (60% inc.) - KSZ19002-1A

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.



Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.



Torque capacity 250Nm

Clamp load 550Kg 60% Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories



Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.



Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.



Torque (Nm): 250
Clamp Load: 550KG (60% inc.)
Flywheel Step: -2.1mm
Clutch Disc Diameter (mm): 190
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22,8
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Diameter [mm]: 190
Stage: Stage 1
Weight [KG]: 5.14



Make	Model	Year	Variant	Engine
Holden	H Series	1985.03-1987.12	QB | 1.3 4x4	G13A 1324 Petrol 47 kW 63 BHP (1985.03 - 1987.12)
Suzuki	SJ413	1984.09-1990.08	1.3 (SJ413)	G13A 1324 Petrol 47 kW 64 BHP (1984.09 - 1990.08)
Suzuki	Samurai	1988.11-2004.12	1.3 (SJ 413)	G13A 1324 Petrol 47 kW 64 BHP (1988.11 - 2004.12)
Suzuki	Sierra	1984.09-1990.03	1.3 (SJ 413)	G13A 1324 Petrol 47 kW 64 BHP (1984.09 - 1990.03)
Suzuki	Sierra	1984.09-1990.03	1.3 (SJ 413. SF413)	G13A 1324 Petrol 47 kW 64 BHP (1984.09 - 1990.03)
