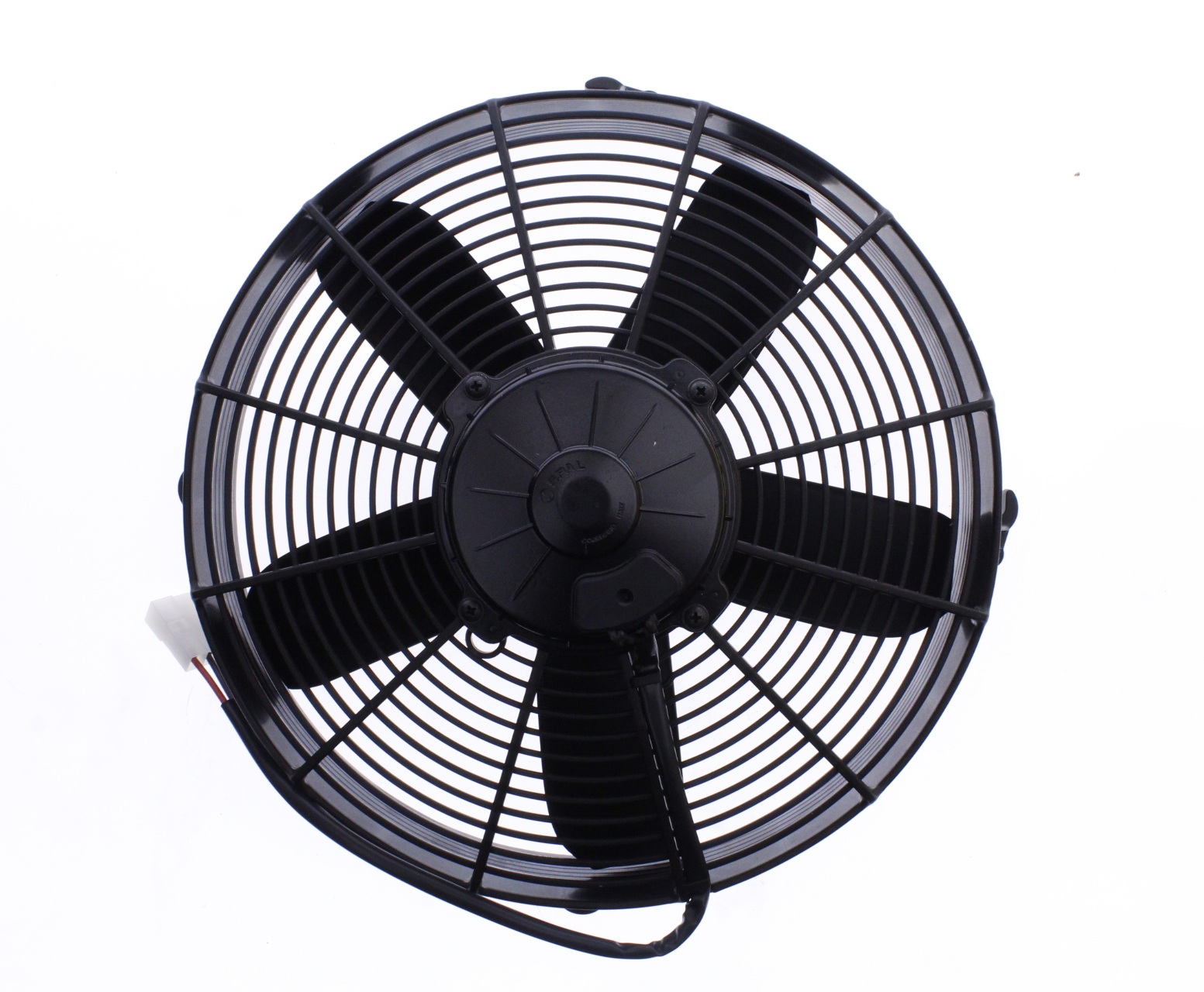

Billede af SPAL 12" - Push - 1522cfm - 24V VA34-BP70/LL-36A Billede af SPAL 12" - Push - 1522cfm - 24V VA34-BP70/LL-36A

SPAL 12" - Push - 1522cfm - 24V VA34-BP70/LL-36A

Leverandør: SPAL
24V VA34-BP70/LL-36A - SP30102554
Varenummer: 1.00164.04-VA34-BP70/LL-36A

Lagerstatus: 1 på lager

1.181,25 (DKK) inkl. moms
i h

SPAL VA34‑BP70/LL‑36A

Basic Description

The SPAL VA34‑BP70/LL‑36A is a 24‑volt axial "puller" (suction) blower fan built for efficient cooling in demanding environments—ideal for radiators, condensers, HVAC, and heavy-duty automotive applications.

Key Specifications

Specification Detail
Voltage 24 V (tested up to ~26 V)
Blade Diameter 305 mm (12 in)
Outer Diameter ~330–331 mm
Depth (Thickness) ~95–96 mm
Airflow (0 mm H₂O) ~2,580 m³/h (~1,522 CFM)
Current Draw (0 pressure) ~8.2 A
Motor Type BP70 with "LL" (Long Life) rating
Blade Type Straight (paddle blades)
Airflow Direction Pull / suction
IP Rating IP68 (water- and dust-proof)
Mounting M5 bolts with ~3 Nm torque
Weight ~2.3–3.5 kg depending on the source

Certifications ISO 9001, ISO/TS 16949, ISO 14001 standards



Reliability & Build Quality

  • Equipped with a durable long-life motor (LL) for extended lifespan.

  • IP68 sealing ensures maximum reliability in harsh operating environments.

  • Comes with a 3‑year warranty, reflecting SPAL’s confidence in product durability.

  • Built to stringent quality standards with ISO certifications.

  • Designed for pulling air effectively through tightly packed or high-resistance systems.

Summary

  • Model: VA34‑BP70/LL‑36A — 24 V, puller (suction) type, long life

  • Size: 305 mm blade, ~330 mm outer, ~95 mm thick

  • Performance: ~2,580 m³/h (1,522 CFM) airflow at 8.2 A, robust output across pressure range

  • Durability: IP68 rating, long-life motor, ISO certified, 36-month warranty

  • Mounting Specs: M5 bolts, torque ~3 Nm

Produkt specifikationer
Tommer / mm. 12,00" / 304,8mm
*
*
*
