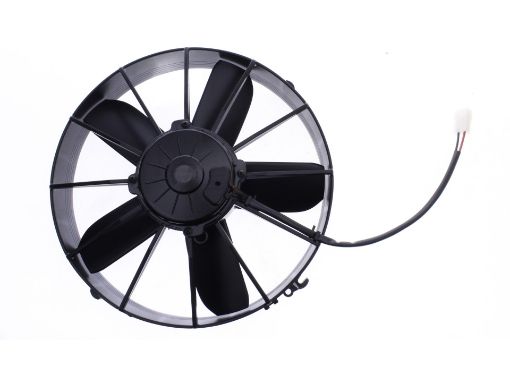

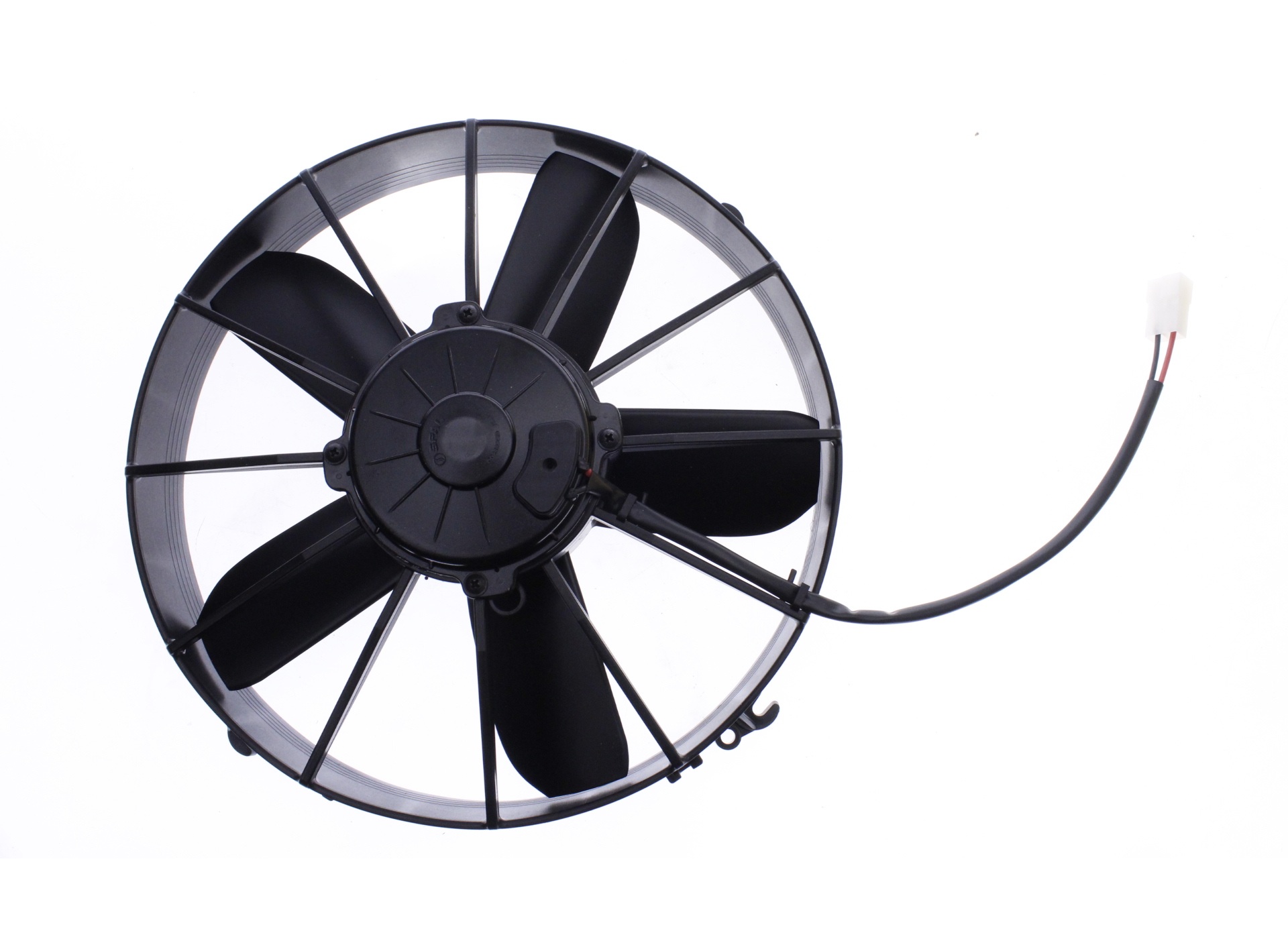

24V VA01-BP70/LL-36S (305 MM)

SPAL VA01-BP70/LL-36S

24V axial blower fan – push type

The VA01-BP70/LL-36S is a high-performance 24V axial fan from SPAL, built for demanding cooling tasks where durability, airflow, and reliability are critical. It’s a blowing (push-type) fan, typically used to force air through radiators, condensers, or oil coolers.

This model is part of SPAL’s "LL" Long Life series, fitted with a high-efficiency sealed motor suitable for harsh environments like off-road, industrial, or commercial vehicles.

Key Specifications

Voltage: 24 V

Motor Type: BP70 (high-performance), “LL” = Long Life

IP Rating: IP68 (dust and waterproof)

Blade Diameter: 305 mm

Overall Diameter: ~330 mm

Fan Depth: ~95 mm

Blade Design: Straight blades (paddle type)

Airflow (0 pressure): ~2760 m³/h (≈ 1628 CFM)

Current Draw: ~7.1 A at 0 pressure, up to ~10.5 A under load

Air Direction: Push (blowing direction)

Weight: ~2.3 to 3.4 kg depending on variant

Mounting: M5 bolts (recommended torque ~3 Nm)

Certifications: ISO 9001, ISO 14001, IATF 16949
