    General

    Temperature range AECQ100 GRADEE1 (-40 to +125 degrees Celcius.
    CPU 32 bits automotive, 90 MIPS
    Reverse polarity protection Yes, internal
    Operating Voltage 6-22V, immunity to transients accordig to ISO 7637
    Enclosure IP 60, bespoke CNC machined aluminium
    Size (mm) and weight (g) 131x112x32.5 - 345g
    Connectors 1x 39 Automotive connector, 1x M6 stud for battery connection
    PC Communication

    CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)

    Outputs:

    High current outputs 10x25A(cont.), 6x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output.
    Total current output 150A continuous
    Output current control step 100mA
    Wipers output Dedicated output with wiper braking feature
    +5V Monitored 5V, 500mA output for powering external sensors.

    Inputs:

    Analog inputs 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
    CAN Keypads 2x ECUmaster keypads (4, 6, 8, 12 keys)








    *
    *
    *

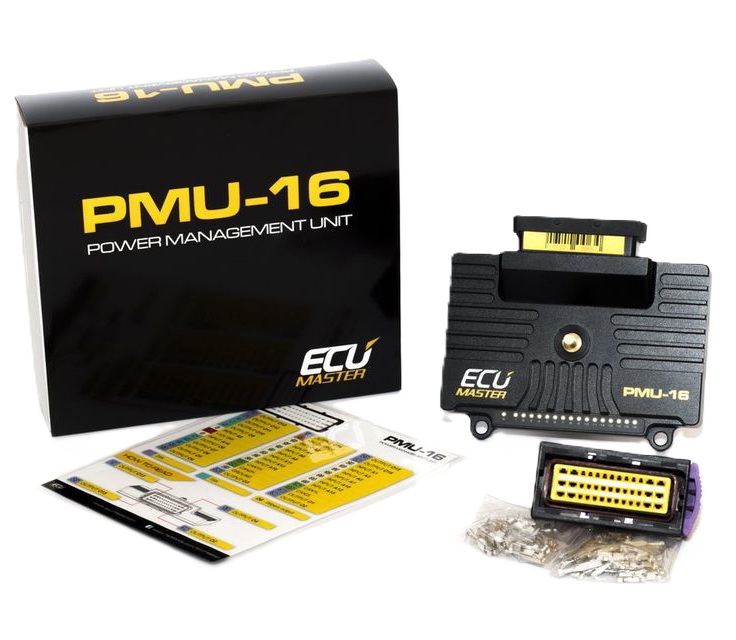

    Billede af ECU Master PMU - Med datalogger
    ECU Master PMU - Med datalogger
    Varenummer: 1.00145-01-PMU-16DL

    Lagerstatus: 1 på lager

    9.495,00 (DKK) inkl. moms
    i h
    Billede af ECU Master PMU - Standard
    ECU Master PMU - Standard
    Varenummer: 1.00145.05-PMU-16

    Lagerstatus: Bestillingsvare

    7.995,00 (DKK) inkl. moms
    i h
    Billede af ECU Master PMU - Autosport Version
    ECU Master PMU - Autosport Version

    Lagerstatus: Bestillingsvare

    15.995,00 (DKK) inkl. moms
